Drosophila Genome Engineering
For BestGene Drosophila Genome Editing Service, pls see here.For currently available Cas9 stocks at BestGene, pls see here.

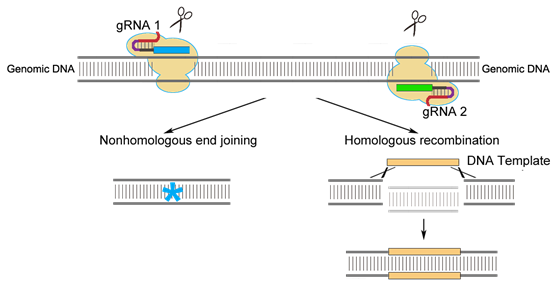

CRISPR/Cas9, TALEN, ZFN system are three powerful genome engineering tools that are composed of programmable, sequence-specific DNA-binding modules associated with a nonspecific DNA nuclease, which introduce DSB (DNA double-strand breaks) that stimulate NHEJ (non-homologous end joining) or HR (homologous recombination) repairing mechanisms at specific genomic locations. In the application of these technology in Drosophila, random indels can be introduced into DSB via NHEJ.
Currently, CRISPR/Cas9 has grown in popularity for Drosophila genome editing.
Drosophila CRISPR/Cas9 System

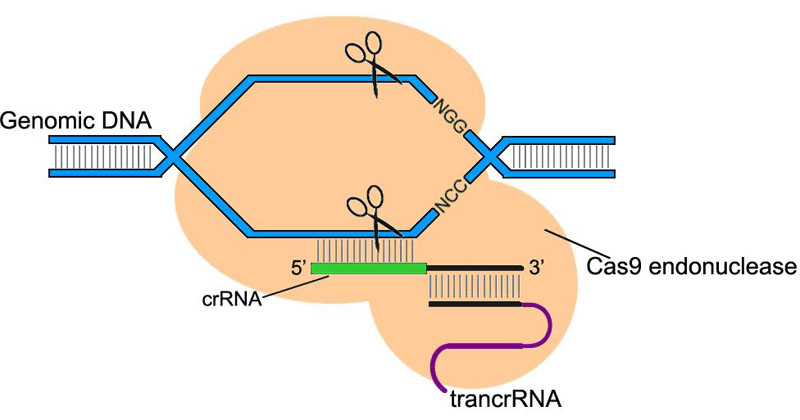

CRISPR/Cas system (clustered regularly interspaced palindromic repeats/CRISPR associated) is a component of bacteria/archaea innate immunity system. Type II CRISPR/Cas9 system uses ~20 nt sequence of crRNA to bind its complementary sequence of exogenous DNA. Subsequently with the aid of trans-acting RNA (trancrRNA), Cas9 endonuclease is recruited to the sequence and cut off the DNA at both strands.
In the application of CRISPR/Cas9 system in Drosophila genome editing, the two RNAs that play key roles can be synthesized into a single chimeric RNA (chiRNA or gRNA). By editing the 20 nt targeting sequence of gRNA, the system introduces DSB on the target sequence followed by an NGG or NAG protospacer adjacent motif (PAM) required for Cas9 cleavage.
Since CRISPR/Cas9 works through RNA-DNA recognition, Cas9 can perform its function simultaneously with multiple gRNA target sites, thus facilitates precise deletion, insertion and sequence replacement between the space via HR repair mechanism.
Below are three main Drosophila CRISPR/Cas9 systems, please visit their websites for more info:
For selecting/designing CRISPR target, DRSC Find CRISPR Tool is a genome-wide resource based on D. melanogaster genome assembly 6, and CRISPR Efficiency Predictor reports predicted efficiency based on nucleotide sequence.
Considering polymorphisms between a chosen fly strain and the reference genome, flyCRISPR Optimal Target Finder identifies gRNA target sites in user-supplied DNA sequence, evaluated with the reference of genome sequences, including D. melanogaster release 6, D. melanogaster vas-Cas9(III) (BDSC#51324) whole-genome sequence and other Drosophila genomes, etc.
Reference:
Gratz, S.J., Cummings, A.M., Nguyen, J.N., Hamm, D.C., Donohue, L.K., Harrison, M.M., Wildonger, J., and O'Connor-Giles, K.M. (2013). Genome engineering of Drosophila with the CRISPR RNA-guided Cas9 nuclease. Genetics 194, 1029-1035Gratz, S.J., Wildonger, J., Harrison, M.M., and O'Connor-Giles, K.M. (2013). CRISPR/Cas9-mediated genome engineering and the promise of designer flies on demand. Fly (Austin) 7
Bassett AR, Tibbit C, Ponting CP, Liu JL (2013). Highly efficient targeted mutagenesis of Drosophila with the CRISPR/Cas9 system. Cell Rep 4(1): 220
Kondo S, Ueda R (2013). Highly improved gene targeting by germline-specific Cas9 expression in Drosophila. Genetics 195(3): 715
Port F, Chen HM, Lee T, Bullock SL. (2014) Optimized CRISPR/Cas tools for efficient germline and somatic genome engineering in Drosophila. PNAS 111(29):E2967
Port F, Muschalik N, Bullock SL. (2015) Systematic evaluation of Drosophila CRISPR tools reveals safe and robust alternatives to autonomous gene drives in basic research. G3 5(7): 1493
Ren XJ, Sun J, Housden BE, Hu YH, Roesel C, Lin SL, Liu LP, Yang ZH, Mao DC, Sun LZ, Wu QJ, Ji JY, Xi JZ, Mohr SE, Xu J, Perrimon N, Ni JQ (2013). Optimized gene editing technology for Drosophila melanogaster using germ line-specific Cas9. PNAS 110(47):19012
Ren X, Yang Z, Xu J, Sun J, Mao D, Hu Y, Yang SJ, Qiao HH, Wang X, Hu Q, Deng P, Liu LP, Ji JY, Li JB, Ni JQ. (2014) Enhanced specificity and efficiency of the CRISPR/Cas9 system with optimized sgRNA parameters in Drosophila. Cell Rep 9(3):1151
Zhang X, Koolhaas WH, Schnorrer F. (2014) A Versatile Two-Step CRISPR- and RMCE-Based Strategy for Efficient Genome Engineering in Drosophila. G3 4(12): 2409
Currently available Drosophila Genome Editing Stocks at BestGene Inc.
flyCRISPR Stocks from Kate O'Connor-Giles, Jill Wildonger and Melissa Harrison
| Name | Stock Number | Genotype | Description | Remark |
| vas-Cas9(X) | BDSC#51323 | y[1] M{vas-Cas9}ZH2A w[1118] | Expresses Cas9 protein under control of vas regulatory sequences. Construct marked with 3xP3-GFP and attP landing site is marked with 3xP3-RFP | RFP+ GFP+ |
| vas-Cas9(X) RFP- | BDSC#55821* | y[1] M{vas-Cas9.RFP-}ZH-2A w[1118] | The same construct as 51323/51324 transformed to BDSC#24480NF - M{vas-int.Dm}ZH-102D removed and loxP-3xP3-RFP removed version | GFP+ RFP- |
| vas-Cas9(II) | BDSC#56552# | w[1118]; PBac{y[+mDint2]=vas-Cas9}VK00037/CyO, P{w[+mC]=Tb[1]}Cpr[CyO-A] | Expresses Cas9 protein under control of vas regulatory sequences. Construct marked with 3xP3-GFP. w+ linked with CyO | y+ GFP+ w+ CyO |
| vas-Cas9(III) | BDSC#51324 | w[1118]; PBac{y[+mDint2]=vas-Cas9}VK00027 | Expresses Cas9 protein in the ovary under control of vas regulatory sequences. Construct marked with 3xP3-GFP. w[1118]; PBac{y[+mDint2]=vas-Cas9}VK00027/TM6B, Tb[1] version is also available. | y+ GFP+ |
#PCR for Cas9 sequence ok; VK00037 landing site PCRs failed. Use with caution.
FlyCas9 Stocks from Shu Kondo and Ryu Ueda
| Name | Stock Number | Genotype | Description | Remark |
| nos-Cas9(X) | NIG-FLY#CAS-0002 | y2 cho2 v1 P{nos-Cas9, y+, v+}1A/FM7c, KrGAL4 UAS-GFP | Expresses Cas9 protein under control of nos regulatory sequences. Inserted at the X chromosome | y+ v+ (red eye) |
| nos-Cas9(II-attP40) | NIG-FLY#CAS-0001 | y2 cho2 v1; attP40{nos-Cas9}/CyO | Expresses Cas9 protein under control of nos regulatory sequences. Inserted at the II chromosome, the attP40 site | y+ v+ (v+ hard to see, red eye) |
| yw;nos-Cas9(II-attP40) | - | yw; attP40{nos-Cas9}/CyO | yw background (much healthier), expresses Cas9 protein under control of nos regulatory sequences. Inserted at the II chromosome, the attP40 site | y+ CyO (white eye) |
| nos-Cas9(II-2A) | NIG-FLY#CAS-0004 | y2 cho2 v1; Sp/CyO, P{nos-Cas9, y+, v+}2A | Expresses Cas9 protein under control of nos regulatory sequences. Inserted at the II chromosome. nos-Cas9 on CyO balancer | y+ v+ Sp CyO (v+ hard to see, red eye) |
| nos-Cas9(III-3A) | NIG-FLY#CAS-0003 | y2 cho2 v1; P{nos-Cas9, y+, v+}3A/TM6C, Sb Tb | Expresses Cas9 protein under control of nos regulatory sequences. Inserted at the III chromosome | y+ v+ TM6C Sb Tb (v+ hard to see, red eye) |
| yw;;nos-Cas9(III-attP2) | - | y1 w1118; attP2{nos-Cas9}/TM6C,Sb Tb | yw background (much healthier), expresses Cas9 protein under control of nos regulatory sequences. Inserted at the III chromosome, the attP2 site. | y+ (white eye) |
CRISPR fly design Stocks* from Fillip Port and Simon Bullock
| Name | Stock Number | Genotype | Description | Remark |
| Act5C-Cas9.P aka CFD1 | BDSC#54590 | y[1] M{w[+mC]=Act5C-Cas9.P}ZH-2A w[*] | Expresses Cas9 protein ubiquitously under control of Act5C regulatory sequences. Insertion site: ZH-2A(2A3) | w+ RFP+ |
| nos-Cas9.P aka CFD2 | BDSC#54591 | y[1] M{w[+mC]=nos-Cas9.P}ZH-2A w[*] | Expresses Cas9 protein during oogenesis under control of nanos regulatory sequences. Insertion site: ZH-2A(2A3) | w+ RFP+ |
| UAS-Cas9.P aka CFD4 | BDSC#54594 | P{ry[+t7.2]=hsFLP}1, y[1] w[1118]; P{y[+t7.7] w[+mC]=UAS-Cas9.P}attP40 | Expresses Cas9 protein under UAS control. May be segregating a Cy[1]-marked balancer. The identity of the hsFLP insertion is a guess. Insertion site: attP40(25C6) | y+ w+ |
| nos-Gal4/UAS-Cas9.P aka CFD3-nos | BDSC#54593 | P{ry[+t7.2]=hsFLP}1, y[1] w[1118]; P{y[+t7.7] w[+mC=UAS-Cas9.P}attP2 P{w[+mC]=GAL4::VP16-nos.UTR}CG6325[MVD1] | Expresses Cas9 protein under UAS control. Expresses GAL4 during oogenesis. The identities of the nos-GAL4 and hsFLP insertions are guesses. Breakpoints or Insertion site: attP2(68A4), 86B4 | y+ w+ |
| act-Cas9(D10A) (nickase) aka CFD13 | - | P{ry[+t7.2]=hsFLP}1, y[1] w[1118]; P{y[+t7.7] w[+mC]=act-Cas9D10A}attP2 | Expresses a Cas9 mutant D10A becoming a nickase ubiquitously under control of Act5C regulatory sequences. Insertion site: attP2(68A4) | y+ w+ |
nos-Cas9 Stocks from Jian-Quan Ni and Norbert Perrimon
| Name | Stock Number | Genotype | Description | Remark |
| TH_attP40 nos-Cas9 | BDSC#78781 or TH00788.N | y[1] sc[*] v[1] sev[21];{nos-Cas9}attP40/CyO | Expresses Cas9 protein under control of nos regulatory sequences. Inserted at the II chromosome, the attP40 site | y+ v+ CyO |
| TH_attP2 nos-Cas9 | BDSC#78782 or TH00787.N | y[1] sc[*] v[1] sev[21];{nos-Cas9}attP2 | Expresses Cas9 protein under control of nos regulatory sequences. Inserted at the III chromosome, the attP2 site | y+ v+ |
Act5C-Cas9, Lig4 Stock from Frank Schnorrer
| Name | Stock Number | Genotype | Description | Remark |
| Act5C-Cas9, Lig4 (X) | BDSC#58492 | y[1] M{Act5C-Cas9.P.RFP-}ZH-2A w[1118] Lig4[169] | M{Act5C-Cas9.P}ZH-2A from which miniwhite and 3xP3-RFP were removed by cre recombinase. Act5C-Cas9 on X under lig4169 background | RFP- |
Creating stable gRNA-expressing lines
For creating stable attP-gRNA-expressing lines, you may actually choose any of the vermillion+ based attP lines from these lists. We may setup the crosses to the y-v- line and screen for v+. You may get the same v+ G2 transformants as using the v- based attP lines. This is just regular Plan H or Plan I with extra v+ screening. You may also ask us to keep the resulting gRNA lines and have us cross to any of the Cas9 stocks and inject their F1s (additional Plan R) later.
For BestGene Drosophila Genome Editing Service, pls see here.
updated 5/26/2023
